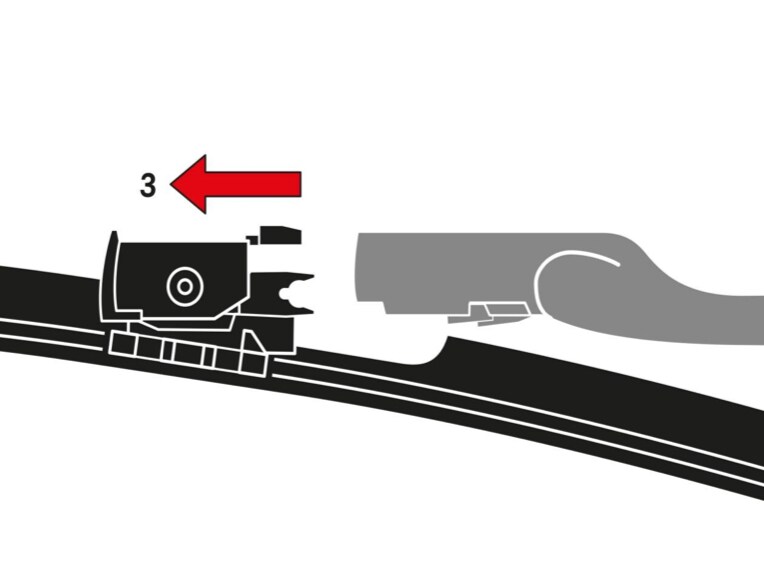

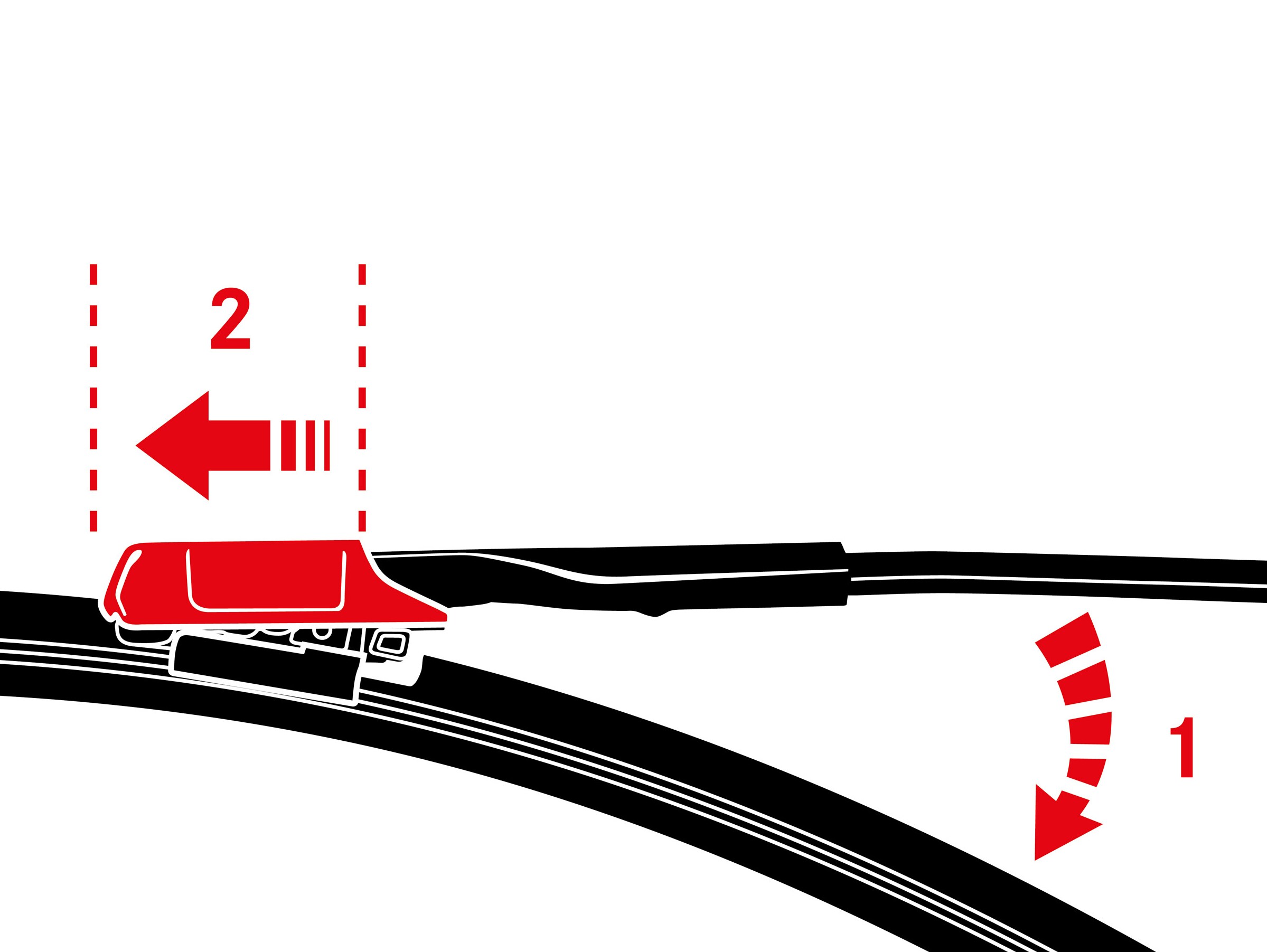

Push the clip away from the wiper blade.

Removal step 2

Push the clip away from the wiper blade.

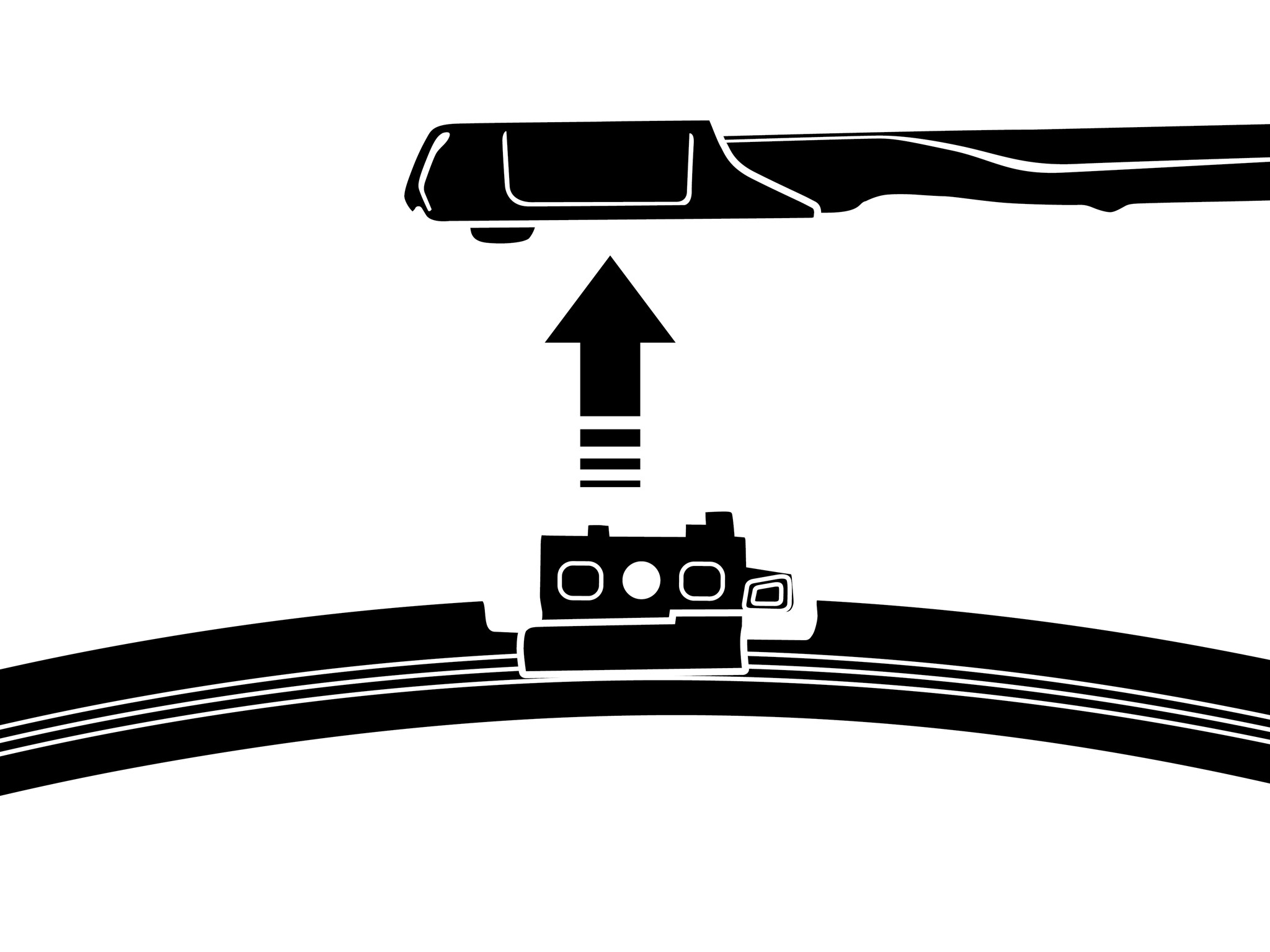

Free the wiper blade

Removal step 3

Free the wiper blade.

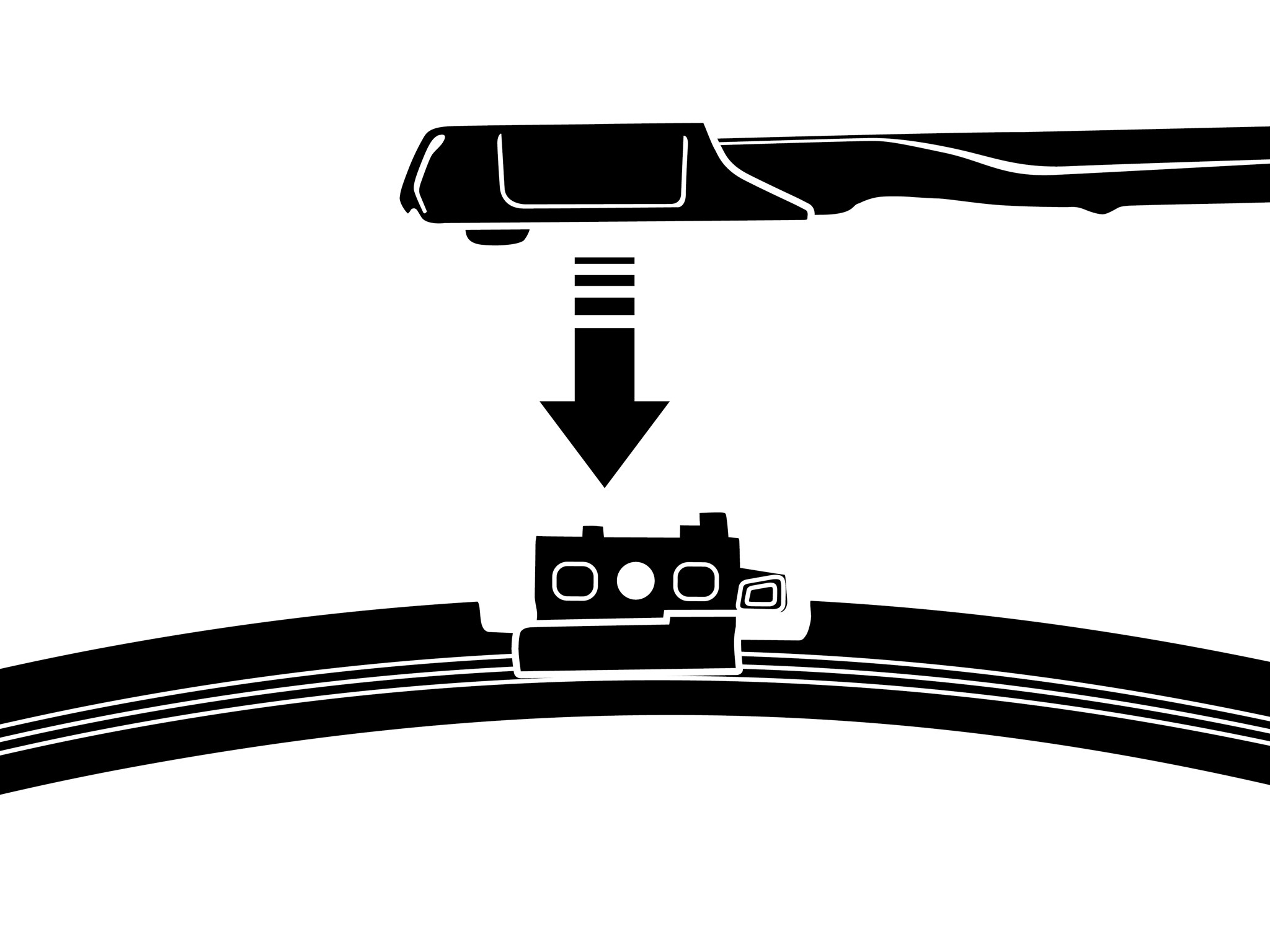

Fit the new wiper blade.

Assembly step 1

Fit the new wiper blade.

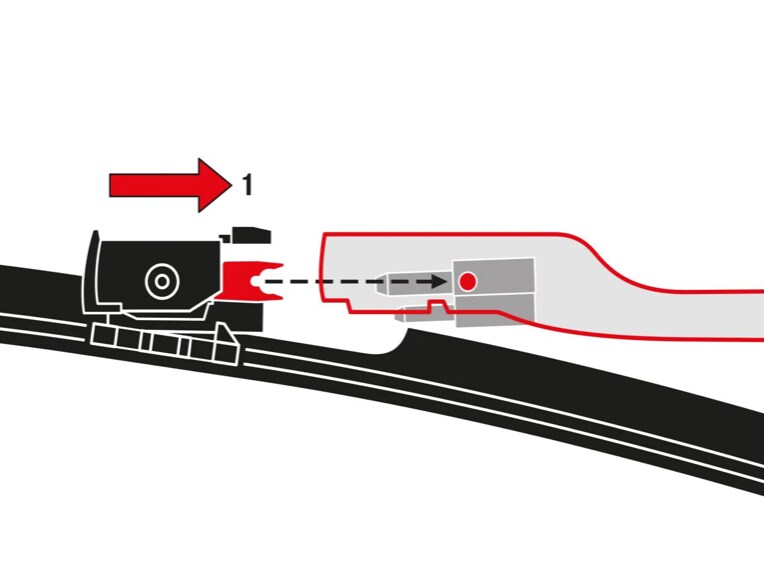

Push the clip back towards the wiper blade

Assembly step 2

Push the clip back towards the wiper blade.

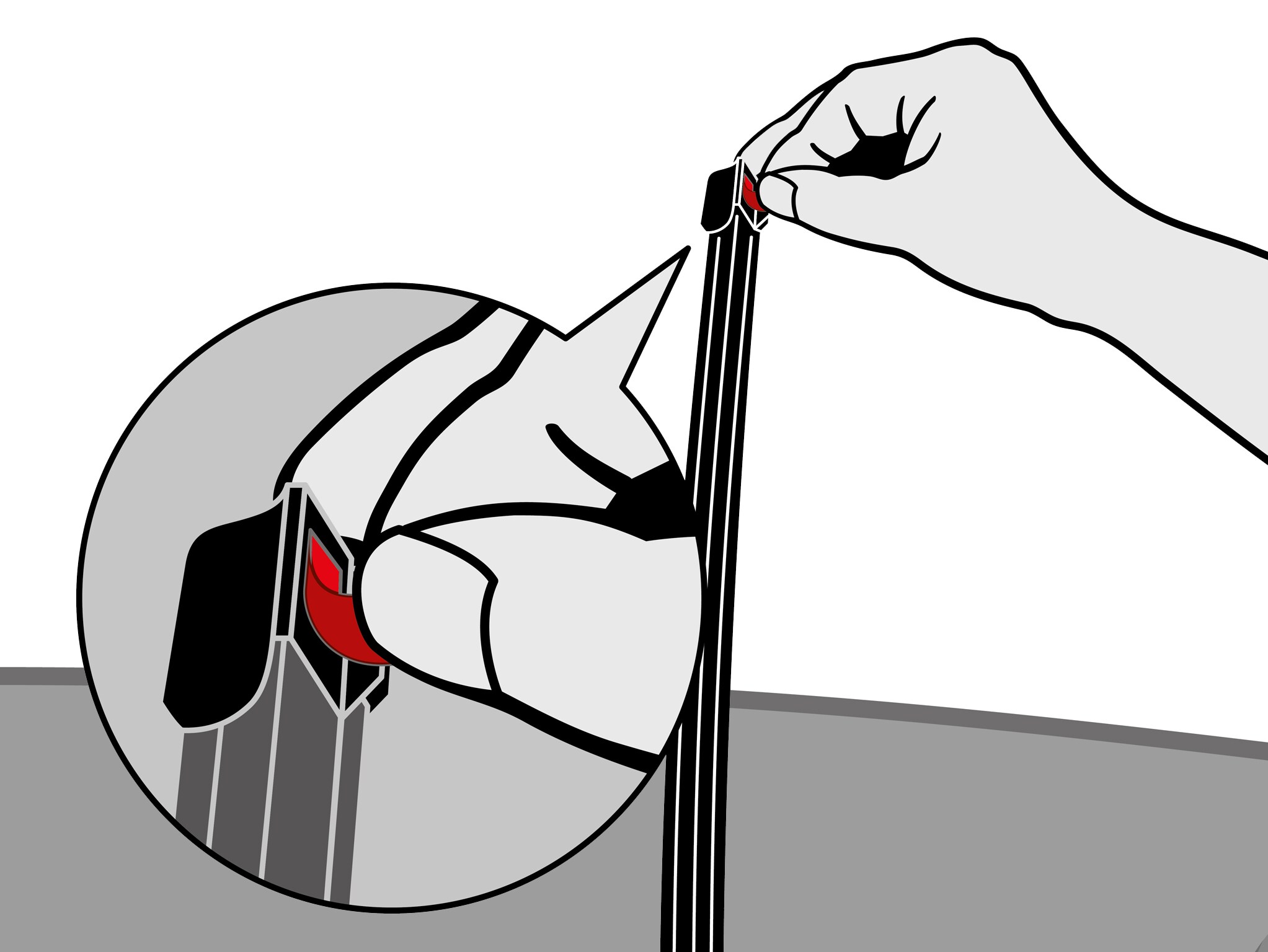

Remove the protective film from the wear indicator

Assembly step 3

Remove the protective film from the wear indicator.

The wear indicator is now active.

Wear indicator step 1

The wear indicator is now active.

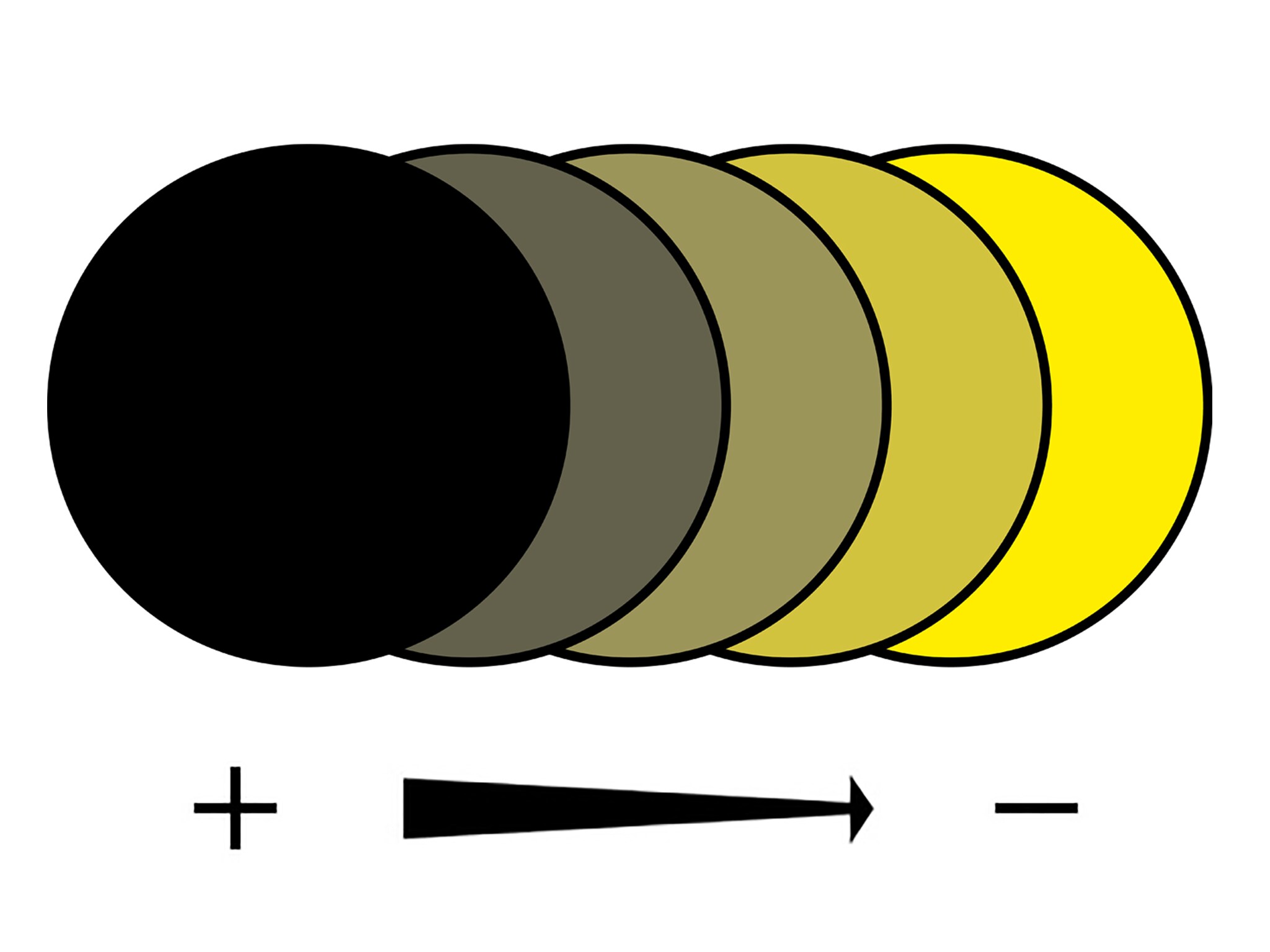

If yellow, please change the wiper blades.

Wear indicator step 2

If yellow, please change the wiper blades.

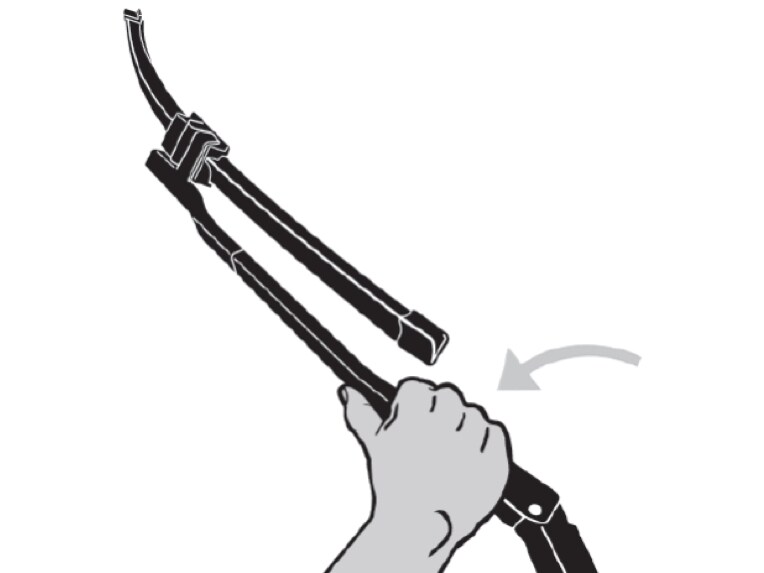

Move the wiper arms to the change position.

Removal step 1

Move the wiper arms to the change position.

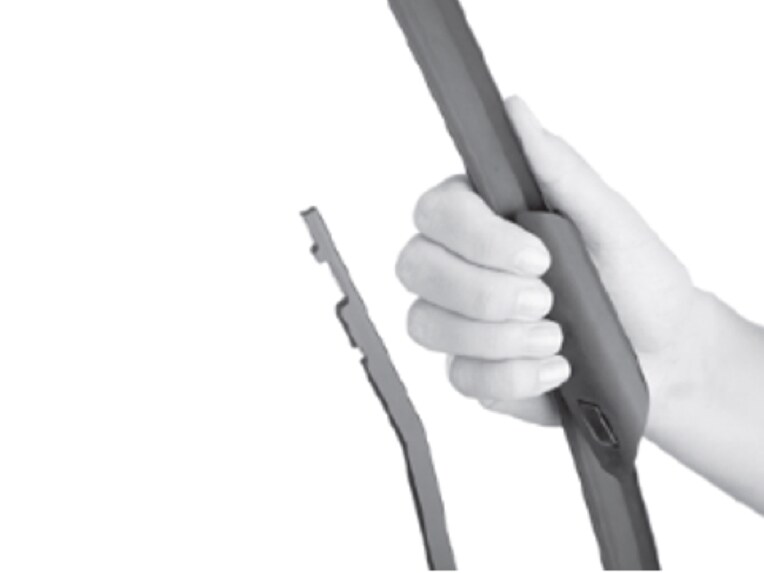

Hold the wiper arm with one hand. With the other hand, move the wiper blade away from the wiper arm as far as it will go.

Removal step 3

Hold the wiper arm with one hand. With the other hand, move the wiper blade away from the wiper arm as far as it will go.

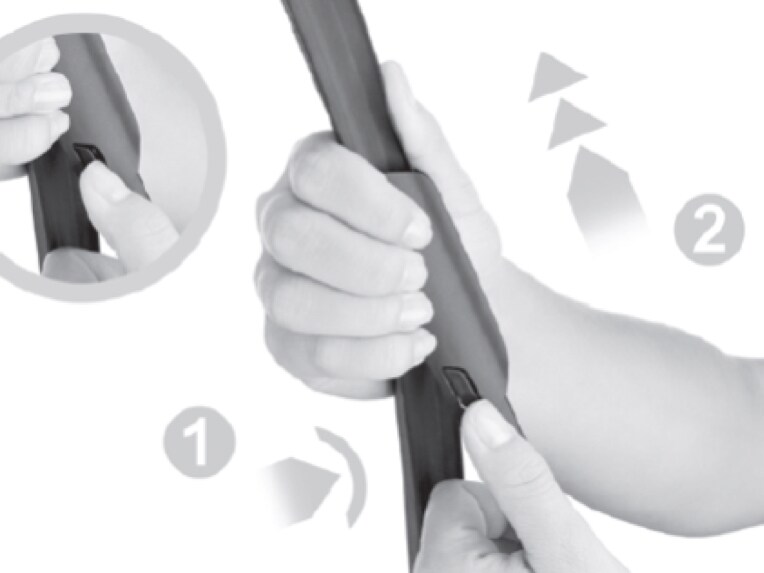

Press the release button and remove the wiper blade from the wiper arm.

Removal step 4

Press the release button and remove the wiper blade from the wiper arm.

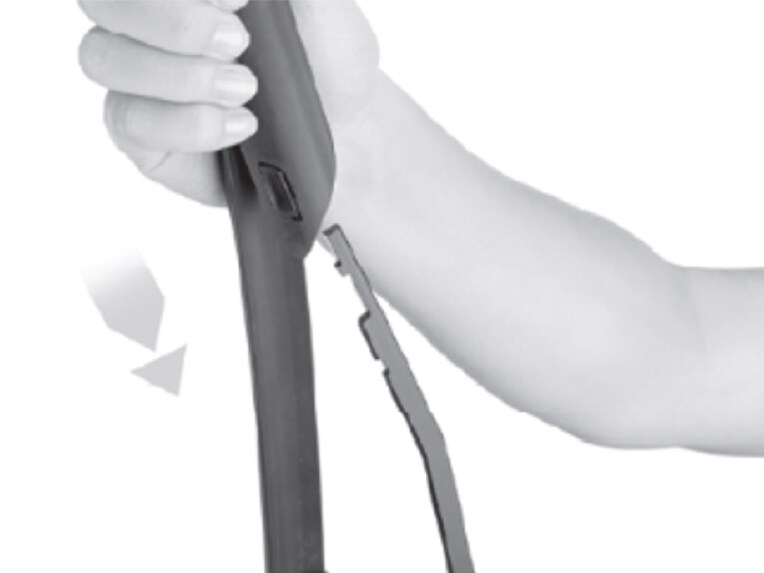

Insert the new wiper blade onto the wiper arm.

Assembly step 1

Insert the new wiper blade onto the wiper arm.

Push the wiper blade forward until the release button engages.

Assembly step 2

Push the wiper blade forward until the release button engages.

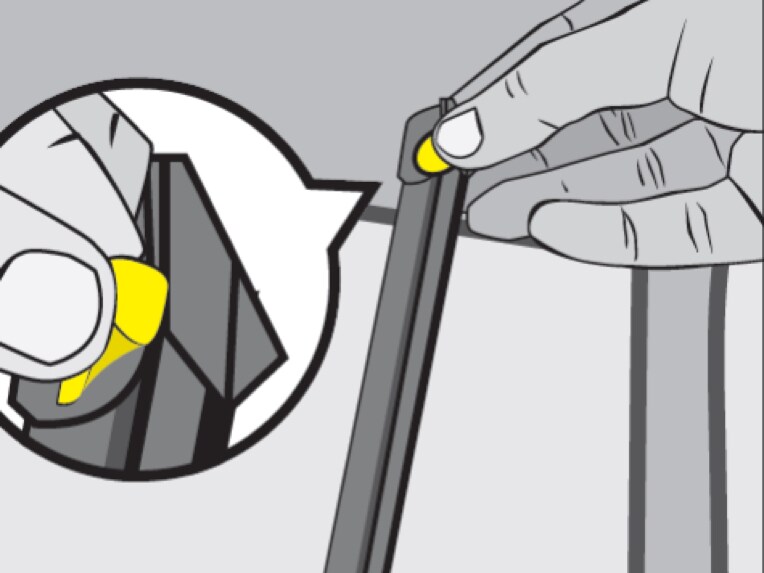

Remove the protective film from the wear indicator.

Wear indicator step 1

Remove the protective film from the wear indicator.

The wear indicator is now active.

Wear indicator step 2

The wear indicator is now active.

If yellow, please change the wiper blades.

Wear indicator step 3

For your safety, please replace the wiper blades.

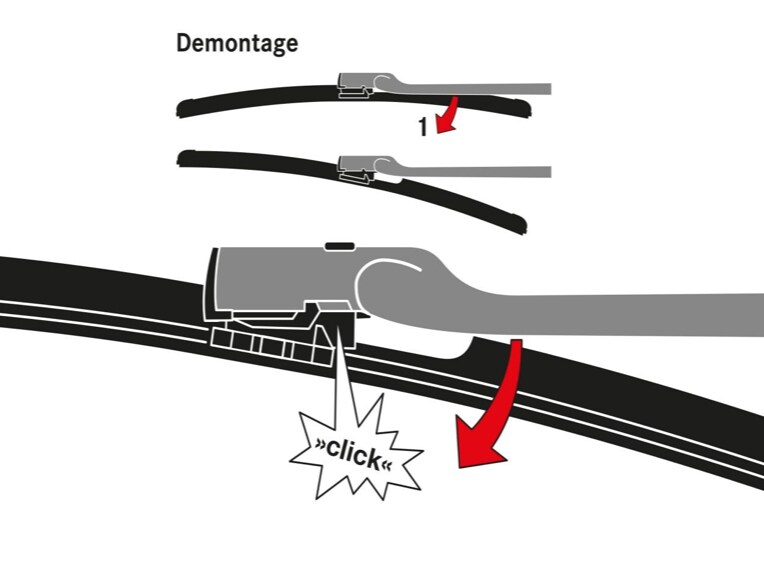

Dismantling windscreen wipers

Removal step 1

Hold the wiper arm with one hand and push the wiper blade in the direction of the arrow with the other hand. The wiper blade engages with an audible click.

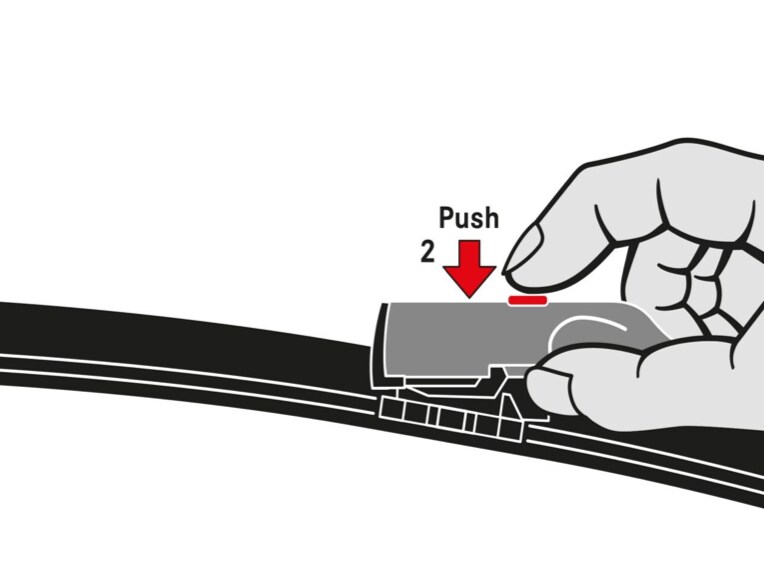

A button is pressed

Removal step 2

Press the release button firmly.

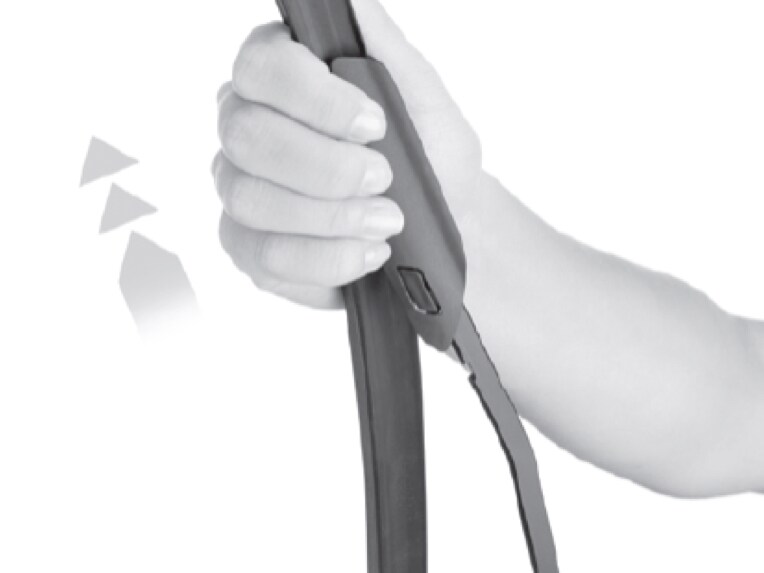

Pull the wiper blade upwards and out

Removal step 3

Pull the wiper blade upwards and out.

Fitting the wiper blade

Assembly step 1

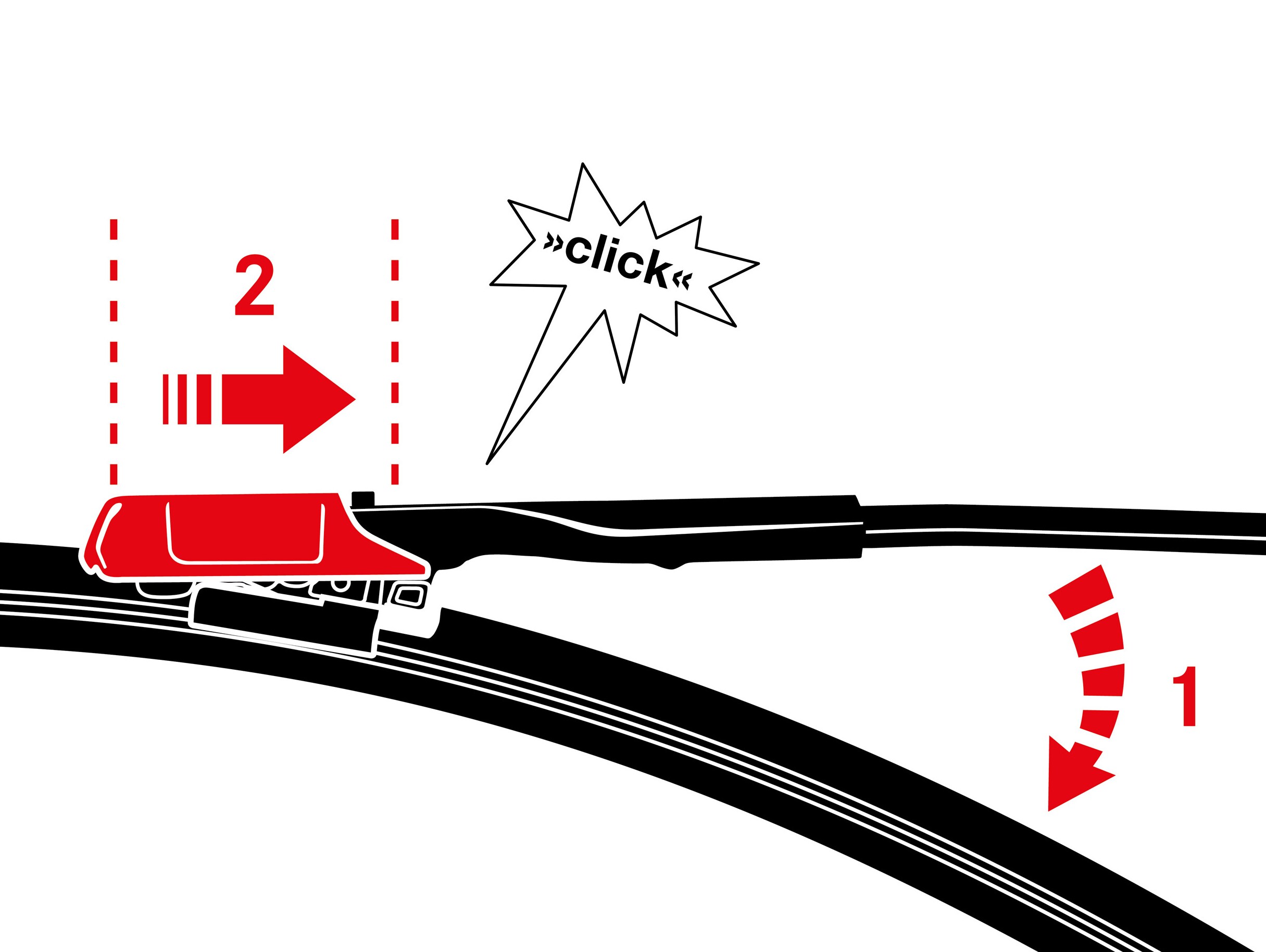

Place the new wiper blade with the nose on the holder on the wiper arm and push it in the direction of the arrow.

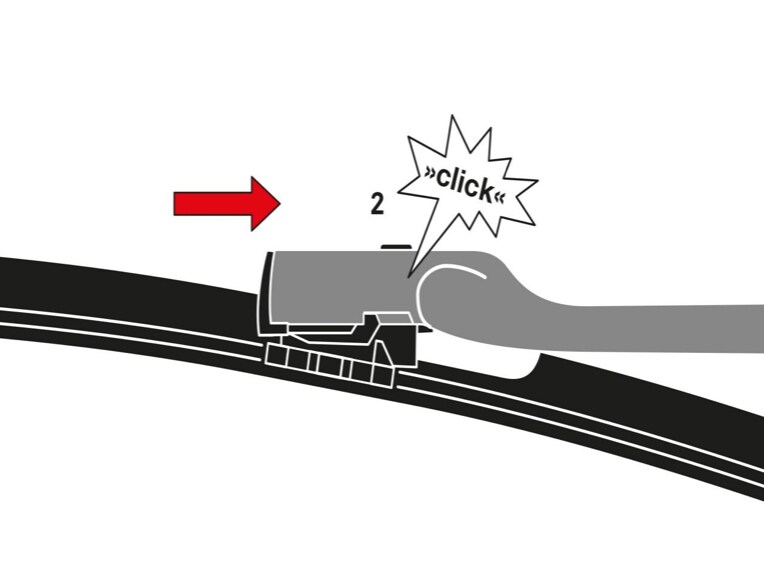

Engage

Assembly step 2

Hear the wiper blade click into place.

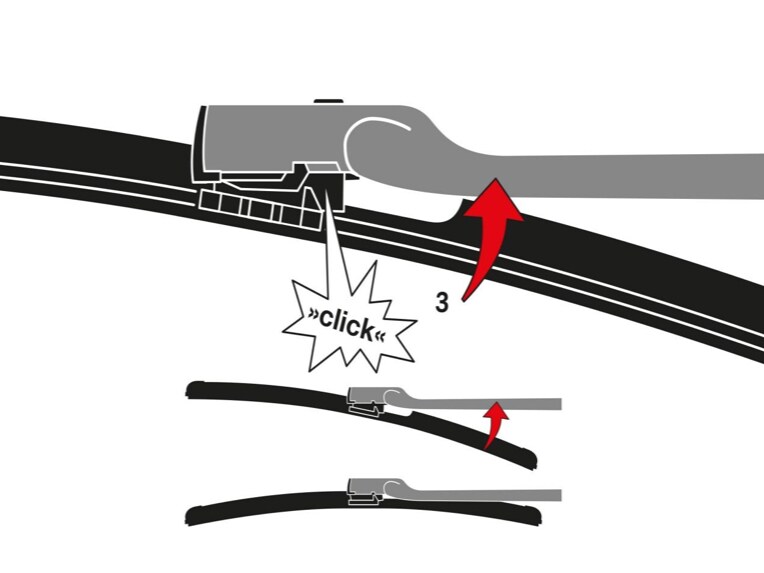

Fold in wiper blade

Assembly step 3

Push the wiper blade back into place in the direction of the arrow. Check the fit of the wiper blade and fold the wiper arm back onto the windscreen.
